flannel
flannel是k8s一个常见的cni
部署
- 需要注意的是net-conf.json中的pod cidr需要喝集群的kube-controller-manager中的–cluster-cidr配置一致
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-flannel
labels:
tier: node
k8s-app: flannel
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"EnableNFTables": false,
"Backend": {
"Type": "vxlan"
}
}kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.ymlip分配
在集群安装的时候有个参数
kubeadm init --pod-network-cidr=10.244.0.0/16其中--pod-network-cidr参数其实就是设置kube-controller-manager的--cluster-cidr=10.244.0.0/16参数kube-controller-manager的
NodeIpamController会为每个节点从配置的池子分配一个子网查看每个节点分配的子网
k get no 10-7-111-92 -o jsonpath="{.spec.podCIDR}"
# 10.244.1.0/24cat /run/flannel/subnet.env
# FLANNEL_NETWORK=10.244.0.0/16
# FLANNEL_SUBNET=10.244.1.1/24
# FLANNEL_MTU=1424
# FLANNEL_IPMASQ=true后端模式
flannel支持多种模式，根据网络情况选择，官方建议模式选择之后不要在中途修改
本文主要针对vxlan等模式，其他模式可以参考官方文档

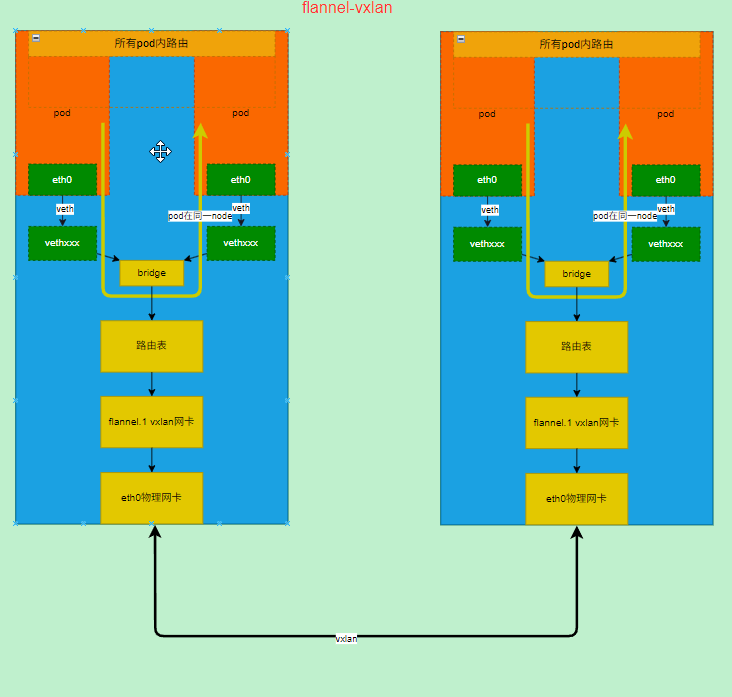

vxlan模式
vxlan模式是flannel的默认模式
- 节点和pod环境说明：有2个节点3个pod其中有2个pod在同一个节点
kubectl get po -o wide
# NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
# ubuntu-664c5f866b-2z472 1/1 Running 0 43m 10.244.0.4 10-7-160-190 <none> <none>
# ubuntu-664c5f866b-865jb 1/1 Running 0 47h 10.244.1.2 10-7-111-92 <none> <none>
# ubuntu-664c5f866b-ngdrj 1/1 Running 0 47h 10.244.1.3 10-7-111-92 <none> <none>
kubectl get no
# NAME STATUS ROLES AGE VERSION
# 10-7-111-92 Ready <none> 47h v1.28.2
# 10-7-160-190 Ready control-plane 47h v1.28.2- 选一个pod连续ping和他同节点的ip
k exec -it ubuntu-664c5f866b-865jb -- ping 10.244.1.3
# PING 10.244.1.3 (10.244.1.3) 56(84) bytes of data.
# 64 bytes from 10.244.1.3: icmp_seq=1 ttl=64 time=0.105 ms
# 64 bytes from 10.244.1.3: icmp_seq=2 ttl=64 time=0.082 ms
# 64 bytes from 10.244.1.3: icmp_seq=3 ttl=64 time=0.102 ms
# 64 bytes from 10.244.1.3: icmp_seq=4 ttl=64 time=0.095 ms- 查看网桥可以看到cni0这个网桥上有2个veth
brctl show
# bridge name bridge id STP enabled interfaces
# cni0 8000.2ef30b426c49 no veth4891a1c9
# vethc408576a- 通过转包可以看到同节点直接通过网桥转发
tcpdump -i cni0
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on cni0, link-type EN10MB (Ethernet), capture size 262144 bytes
# 18:07:04.005795 IP 10.244.1.2 > 10.244.1.3: ICMP echo request, id 17509, seq 164, length 64
# 18:07:04.005867 IP 10.244.1.3 > 10.244.1.2: ICMP echo reply, id 17509, seq 164, length 64
# 18:07:05.029763 IP 10.244.1.2 > 10.244.1.3: ICMP echo request, id 17509, seq 165, length 64
# 18:07:05.029814 IP 10.244.1.3 > 10.244.1.2: ICMP echo reply, id 17509, seq 165, length 64- 此时抓包flannel.1是没有流量的
tcpdump -i flannel.1
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on flannel.1, link-type EN10MB (Ethernet), capture size 262144 bytes- 查看cni0可以看到详细信息
ip -d link show cni0
# 6: cni0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1402 qdisc noqueue state UP mode DEFAULT group default qlen 1000
# link/ether 2e:f3:0b:42:6c:49 brd ff:ff:ff:ff:ff:ff promiscuity 0
# bridge forward_delay 1500 hello_time 200 max_age 2000 ageing_time 30000 stp_state 0 priority 32768 vlan_filtering 0 vlan_protocol 802.1Q bridge_id 8000.2e:f3:b:42:6c:49 designated_root 8000.2e:f3:b:42:6c:49 root_port 0 root_path_cost 0 topology_change 0 topology_change_detected 0 hello_timer 0.00 tcn_timer 0.00 topology_change_timer 0.00 gc_timer 291.45 vlan_default_pvid 1 vlan_stats_enabled 0 group_fwd_mask 0 group_address 01:80:c2:00:00:00 mcast_snooping 1 mcast_router 1 mcast_query_use_ifaddr 0 mcast_querier 0 mcast_hash_elasticity 4 mcast_hash_max 512 mcast_last_member_count 2 mcast_startup_query_count 2 mcast_last_member_interval 100 mcast_membership_interval 26000 mcast_querier_interval 25500 mcast_query_interval 12500 mcast_query_response_interval 1000 mcast_startup_query_interval 3125 mcast_stats_enabled 0 mcast_igmp_version 2 mcast_mld_version 1 nf_call_iptables 0 nf_call_ip6tables 0 nf_call_arptables 0 addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535- 查看flannel.1网卡详细信息可以看到他是个vxlan网卡
ip -d link show flannel.1
# 5: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1402 qdisc noqueue state UNKNOWN mode DEFAULT group default
# link/ether 06:74:ad:94:9f:06 brd ff:ff:ff:ff:ff:ff promiscuity 0
# vxlan id 1 local 10.7.111.92 dev eth0 srcport 0 0 dstport 8472 nolearning ageing 300 udpcsum noudp6zerocsumtx noudp6zerocsumrx addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535- 我们改为ping不在同节点的pod
k exec -it ubuntu-664c5f866b-865jb -- ping 10.244.0.4
# PING 10.244.0.4 (10.244.0.4) 56(84) bytes of data.
# 64 bytes from 10.244.0.4: icmp_seq=1 ttl=62 time=2.14 ms
# 64 bytes from 10.244.0.4: icmp_seq=2 ttl=62 time=0.363 ms
# 64 bytes from 10.244.0.4: icmp_seq=3 ttl=62 time=0.322 ms
# 64 bytes from 10.244.0.4: icmp_seq=4 ttl=62 time=0.362 ms
# 64 bytes from 10.244.0.4: icmp_seq=5 ttl=62 time=0.307 ms- 抓eth0包可以看到Icmp协议
tcpdump -i cni0
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on cni0, link-type EN10MB (Ethernet), capture size 262144 bytes
# 18:18:14.085771 IP 10.244.1.2 > 10.244.0.4: ICMP echo request, id 17562, seq 354, length 64
# 18:18:14.086116 IP 10.244.0.4 > 10.244.1.2: ICMP echo reply, id 17562, seq 354, length 64
# 18:18:15.109806 IP 10.244.1.2 > 10.244.0.4: ICMP echo request, id 17562, seq 355, length 64- 可以看到flannel.1上可以看到流量
tcpdump -i flannel.1
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on flannel.1, link-type EN10MB (Ethernet), capture size 262144 bytes
# 18:13:43.749812 IP 10.244.1.2 > 10.244.0.4: ICMP echo request, id 17562, seq 90, length 64
# 18:13:43.750086 IP 10.244.0.4 > 10.244.1.2: ICMP echo reply, id 17562, seq 90, length 64
# 18:13:44.773764 IP 10.244.1.2 > 10.244.0.4: ICMP echo request, id 17562, seq 91, length 64- 抓eth0上的vxlan包可以看到有记录，外面是vxlan的信息里面才是icmp
tcpdump 'udp[39]=1' -nv -i eth0
# tcpdump: listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes
# 18:16:21.445817 IP (tos 0x0, ttl 64, id 55345, offset 0, flags [none], proto UDP (17), length 134)
# 10.7.111.92.28167 > 10.7.160.190.otv: OTV, flags [I] (0x08), overlay 0, instance 1
# IP (tos 0x0, ttl 63, id 33261, offset 0, flags [DF], proto ICMP (1), length 84)
# 10.244.1.2 > 10.244.0.4: ICMP echo request, id 17562, seq 244, length 64
# 18:16:21.446069 IP (tos 0x0, ttl 63, id 23398, offset 0, flags [none], proto UDP (17), length 134)
# 10.7.160.190.59128 > 10.7.111.92.otv: OTV, flags [I] (0x08), overlay 0, instance 1
# IP (tos 0x0, ttl 63, id 24980, offset 0, flags [none], proto ICMP (1), length 84)
# 10.244.0.4 > 10.244.1.2: ICMP echo reply, id 17562, seq 244, length 64- 可以看到10.244.0.0/24从flannel.1这个vxlan网卡中走
ip r
# default via 10.7.0.1 dev eth0
# 10.7.0.0/16 dev eth0 proto kernel scope link src 10.7.111.92
# 10.244.0.0/24 via 10.244.0.0 dev flannel.1 onlink
# 10.244.1.0/24 dev cni0 proto kernel scope link src 10.244.1.1
# 169.254.0.0/16 dev eth0 scope link metric 1002vxlan小结
- 同一节点通过使用网桥进行转发，不同节点则通过vxlan连接，隧道方案

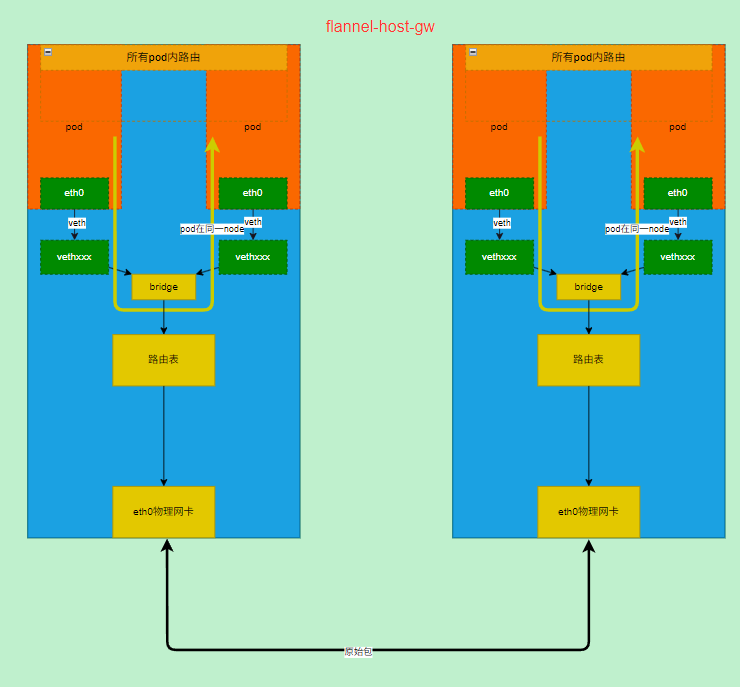

host-gw模式
host-gw模式性能好，但是需要在同一个二层网络中
- 要是用host-gw模式需要修改配置文件
net-conf.json中的Backend.Type字段为host-gw
{
"Network": "10.244.0.0/16",
"EnableNFTables": false,
"Backend": {
"Type": "host-gw"
}
}- 如果从vxlan切换到host-gw需要重启ds，生产环境不建议切换中途切换后端应该在一开始就确定好
kubectl -n kube-flannel rollout restart ds kube-flannel-ds- 重启pod
kubectl rollout restart deploy ubunut
kubectl get po -o wide
# NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
# ubuntu-6977d854b5-fr84f 1/1 Running 0 22m 10.244.1.8 10-7-111-92 <none> <none>
# ubuntu-6977d854b5-wx5g2 1/1 Running 0 22m 10.244.1.7 10-7-111-92 <none> <none>
# ubuntu-6977d854b5-z4zrm 1/1 Running 0 22m 10.244.0.6 10-7-160-190 <none> <none>- 可以看到这里路由发生了变化，其他节点的子网没有通过finnel.1网卡了
ip r
# default via 10.7.0.1 dev eth0
# 10.7.0.0/16 dev eth0 proto kernel scope link src 10.7.160.190
# 10.244.0.0/24 dev cni0 proto kernel scope link src 10.244.0.1
# 10.244.1.0/24 via 10.7.111.92 dev eth0
# 169.254.0.0/16 dev eth0 scope link metric 1002- 网桥和vxlan一样
brctl show
# bridge name bridge id STP enabled interfaces
# cni0 8000.caec2ed8725c no veth2bee3635
# veth71d54f5e
# vetheb4cd45c- ping下其他节点的pod
kubectl exec -it ubuntu-6977d854b5-fr84f -- ping 10.244.0.6
# PING 10.244.0.6 (10.244.0.6) 56(84) bytes of data.
# 64 bytes from 10.244.0.6: icmp_seq=1 ttl=61 time=1.68 ms
# 64 bytes from 10.244.0.6: icmp_seq=2 ttl=61 time=0.276 ms
# 64 bytes from 10.244.0.6: icmp_seq=3 ttl=61 time=0.252 ms
# 64 bytes from 10.244.0.6: icmp_seq=4 ttl=61 time=0.305 ms
# 64 bytes from 10.244.0.6: icmp_seq=5 ttl=61 time=0.289 ms- 可以直接在eth0网卡上抓到，证明是直接通过路由走的没有隧道
# [root@10-7-160-190 ~]#
tcpdump -i eth0 host 10.244.0.6
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes
# 11:38:23.237056 IP 10.244.1.8 > 10.244.0.6: ICMP echo request, id 497, seq 23, length 64
# 11:38:23.237155 IP 10.244.0.6 > 10.244.1.8: ICMP echo reply, id 497, seq 23, length 64
# 11:38:24.261040 IP 10.244.1.8 > 10.244.0.6: ICMP echo request, id 497, seq 24, length 64
# 11:38:24.261123 IP 10.244.0.6 > 10.244.1.8: ICMP echo reply, id 497, seq 24, length 64
# 11:38:25.285108 IP 10.244.1.8 > 10.244.0.6: ICMP echo request, id 497, seq 25, length 64
# 11:38:25.285200 IP 10.244.0.6 > 10.244.1.8: ICMP echo reply, id 497, seq 25, length 64host-gw模式小结
- 总体与vxlan模式很像，只是跨节点的时候使用直接路由，这也就导致所有节点必须在同个二层网络中

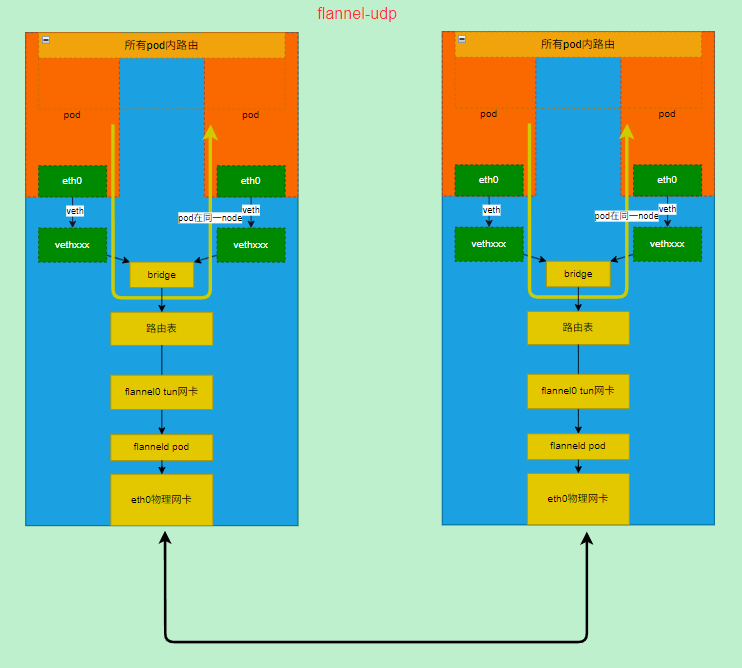

UDP模式
- 修改配置文件
net-conf.json中的Backend.Type字段为udp
{
"Network": "10.244.0.0/16",
"EnableNFTables": false,
"Backend": {
"Type": "udp"
}
}- 映射tun设备到flannl的pod中，添加一个hostpath volume到容器中,如下
apiVersion: apps/v1
kind: DaemonSet
metadata:
labels:
app: flannel
k8s-app: flannel
tier: node
name: kube-flannel-ds
namespace: kube-flannel
spec:
revisionHistoryLimit: 10
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
app: flannel
tier: node
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/os
operator: In
values:
- linux
containers:
- args:
- --ip-masq
- --kube-subnet-mgr
command:
- /opt/bin/flanneld
env:
- name: POD_NAME
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: EVENT_QUEUE_DEPTH
value: "5000"
image: ghcr.io/flannel-io/flannel:v0.26.7
imagePullPolicy: IfNotPresent
name: kube-flannel
resources:
requests:
cpu: 100m
memory: 50Mi
securityContext:
capabilities:
add:
- NET_ADMIN
- NET_RAW
privileged: false
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /run/flannel
name: run
- mountPath: /etc/kube-flannel/
name: flannel-cfg
- mountPath: /run/xtables.lock
name: xtables-lock
- mountPath: /dev/net/ # 添加tun
name: devnet
dnsPolicy: ClusterFirst
hostNetwork: true
initContainers:
- args:
- -f
- /flannel
- /opt/cni/bin/flannel
command:
- cp
image: ghcr.io/flannel-io/flannel-cni-plugin:v1.7.1-flannel1
imagePullPolicy: IfNotPresent
name: install-cni-plugin
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /opt/cni/bin
name: cni-plugin
- args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
command:
- cp
image: ghcr.io/flannel-io/flannel:v0.26.7
imagePullPolicy: IfNotPresent
name: install-cni
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /etc/cni/net.d
name: cni
- mountPath: /etc/kube-flannel/
name: flannel-cfg
priorityClassName: system-node-critical
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
serviceAccount: flannel
serviceAccountName: flannel
terminationGracePeriodSeconds: 30
tolerations:
- effect: NoSchedule
operator: Exists
volumes:
- hostPath:
path: /run/flannel
type: ""
name: run
- hostPath:
path: /opt/cni/bin
type: ""
name: cni-plugin
- hostPath: # 添加tun
path: /dev/net/
type: ""
name: devnet
- hostPath:
path: /etc/cni/net.d
type: ""
name: cni
- configMap:
defaultMode: 420
name: kube-flannel-cfg
name: flannel-cfg
- hostPath:
path: /run/xtables.lock
type: FileOrCreate
name: xtables-lock
updateStrategy:
rollingUpdate:
maxSurge: 0
maxUnavailable: 1
type: RollingUpdate- 重启测试pod，以使用udp模式
kubectl rollout restart deploy ubuntu
kubectl get po -o wide
# NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
# ubuntu-758c785f-4cc77 1/1 Running 1 (25m ago) 62m 10.244.1.11 10-7-111-92 <none> <none>
# ubuntu-758c785f-l9xkj 1/1 Running 1 (25m ago) 62m 10.244.1.12 10-7-111-92 <none> <none>
# ubuntu-758c785f-vfv7z 1/1 Running 1 (33m ago) 62m 10.244.0.10 10-7-160-190 <none> <none>- 查看网卡可以看到多一个叫flannel0的tun设备,他的ip是本节点pod cidr的网关地址
ip -d link show flannel0
# 12: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1424 qdisc pfifo_fast state UNKNOWN mode DEFAULT group default qlen 500
# link/none promiscuity 0
# tun addrgenmode random numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535
ip addr show flannel0
# 12: flannel0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1424 qdisc pfifo_fast state UNKNOWN group default qlen 500
# link/none
# inet 10.244.0.0/32 scope global flannel0
# valid_lft forever preferred_lft forever
# inet6 fe80::2b9d:4669:a8f2:ffed/64 scope link flags 800
# valid_lft forever preferred_lft forever- 查看路由可以发现多了个
10.244.0.0/16这条路路有下一跳是flannel0这个设备
ip r
# default via 10.7.0.1 dev eth0
# 10.7.0.0/16 dev eth0 proto kernel scope link src 10.7.160.190
# 10.244.0.0/24 dev cni0 proto kernel scope link src 10.244.0.1
# 10.244.0.0/16 dev flannel0
# 169.254.0.0/16 dev eth0 scope link metric 1002- 测试访问不同节点
kubectl exec -it ubuntu-758c785f-l9xkj -- ping 10.244.0.10
# PING 10.244.0.10 (10.244.0.10) 56(84) bytes of data.
# 64 bytes from 10.244.0.10: icmp_seq=1 ttl=60 time=0.362 ms
# 64 bytes from 10.244.0.10: icmp_seq=2 ttl=60 time=0.450 ms
# 64 bytes from 10.244.0.10: icmp_seq=3 ttl=60 time=0.448 ms
# 64 bytes from 10.244.0.10: icmp_seq=4 ttl=60 time=0.455 ms
# 64 bytes from 10.244.0.10: icmp_seq=5 ttl=60 time=0.377 ms
# 64 bytes from 10.244.0.10: icmp_seq=6 ttl=60 time=0.373 ms- 抓包flannel0可以看到抓包信息
tcpdump -i flannel0
# tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
# listening on flannel0, link-type RAW (Raw IP), capture size 262144 bytes
# 14:39:59.659280 IP 10.244.1.12 > 10.244.0.10: ICMP echo request, id 232, seq 289, length 64
# 14:39:59.659339 IP 10.244.0.10 > 10.244.1.12: ICMP echo reply, id 232, seq 289, length 64
# 14:40:00.683366 IP 10.244.1.12 > 10.244.0.10: ICMP echo request, id 232, seq 290, length 64
# 14:40:00.683458 IP 10.244.0.10 > 10.244.1.12: ICMP echo reply, id 232, seq 290, length 64
# 14:40:01.707352 IP 10.244.1.12 > 10.244.0.10: ICMP echo request, id 232, seq 291, length 64
# 14:40:01.707451 IP 10.244.0.10 > 10.244.1.12: ICMP echo reply, id 232, seq 291, length 64UDP模式小结
- 和其他两种模式差不多只不过跨节点的时候使用了tun设备和flannel的封装，然后在通过eth0发给对应的节点
参考资料
https://github.com/flannel-io/flannel/blob/master/Documentation/backends.md
